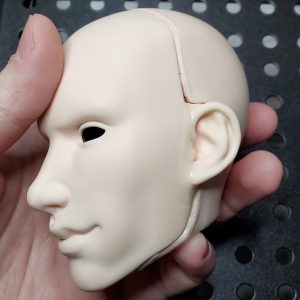

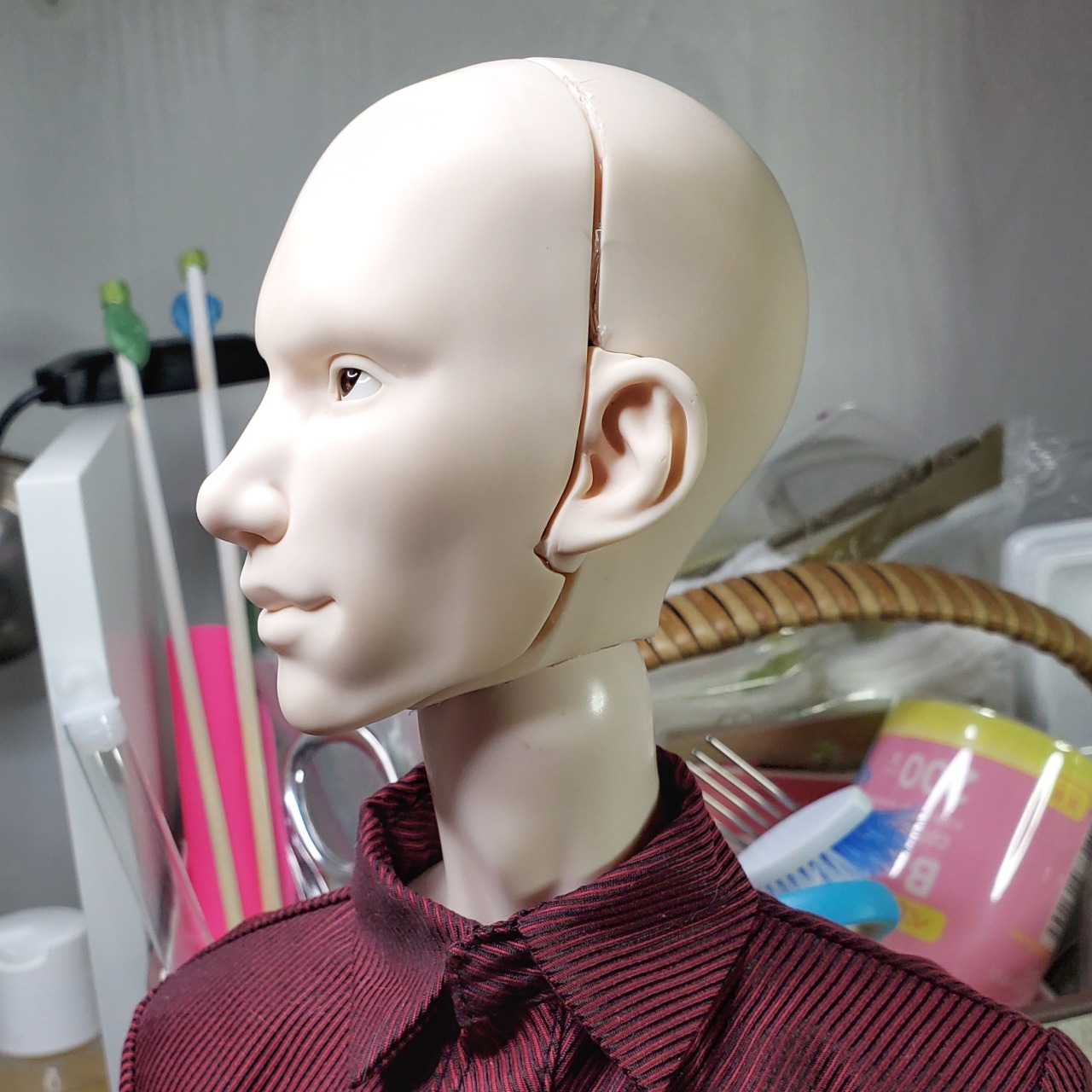

I wasn’t happy with the fit of the glued pieces on 70cm Tennant’s head, so I attached the ears and filled in some of the gaps with Milliput. This was better, but then I also remembered that I could use some of the same UV resin I printed with to cover up the Milliput bits. After sanding it looks much better!

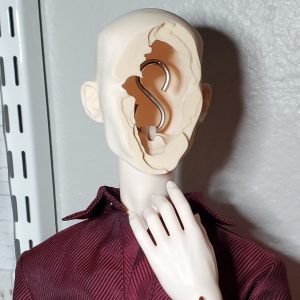

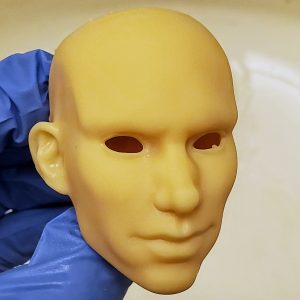

This is another project I’ve had going for a while… Tennant but Big! The faceplate is the full width of my printer so I did the ears as separate pieces. I got this Charmdoll body (72cm) in the older opaque resin and I like it but in photos the neck looks a bit thin for his jaw. (It doesn’t look as bad IRL so I I have no idea, haha.) I sanded the jaw down a bit, which was easy enough to do since this is the first print I’ve done where I’m trying to use the actual printed resin as the final surface – many thanks to @aishavoya for giving me a tip about using the white resin pigment ages ago. There’s also a bonus digital mockup and a bonus shot of the first try at the faceplate where I seriously undershot on how much resin I needed in the vat.

1. Custom 3D printed resin head on a Charmdoll 72cm body body in old resin pink

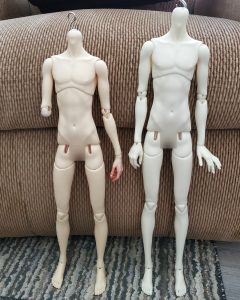

Also in that last post, but I received the Dream Valley body in yellow for Tennant, so naturally I went right about cutting it up, haha. He was way too tall compared to Daniel and Conchita. He’s still a bit too tall but any further height would be harder to remove. I removed a chunk from the ankles and shortened the neck.

It wasn’t too hard, just a lot of sanding to smooth it out. I did it once before on a Resinsoul body and used Milliput to connect the pieces which I think was less visible, but I got lazy here and used superglue since I could always Milliput later.

What I did was stick the calves onto the feet, then draw two level lines around them by holding a pencil parallel to the table and rotating the calves. I drew perpendicular lines across (like a train track) and also marked the back center to keep things lined up. I cut the pieces out with a Dremel (saw might’ve been better but I don’t have a good one) and used a coarse sandpaper flat on the counter to get the edges flat and even. I glued them together by lining up the back center lines and the internal channel, then sanded it smooth.

1. Dream Valley B4-04 51cm boy body in yellow with mods and Dollshe 18M Fashion Maxi Mystic hand in Oriental
2. Custom 3D printed head and body with Resinsoul Tang limbs and Dollshe 28M Fashion Maxi hands
3. Dream Valley B4-04 51cm boy body in white, unmodded

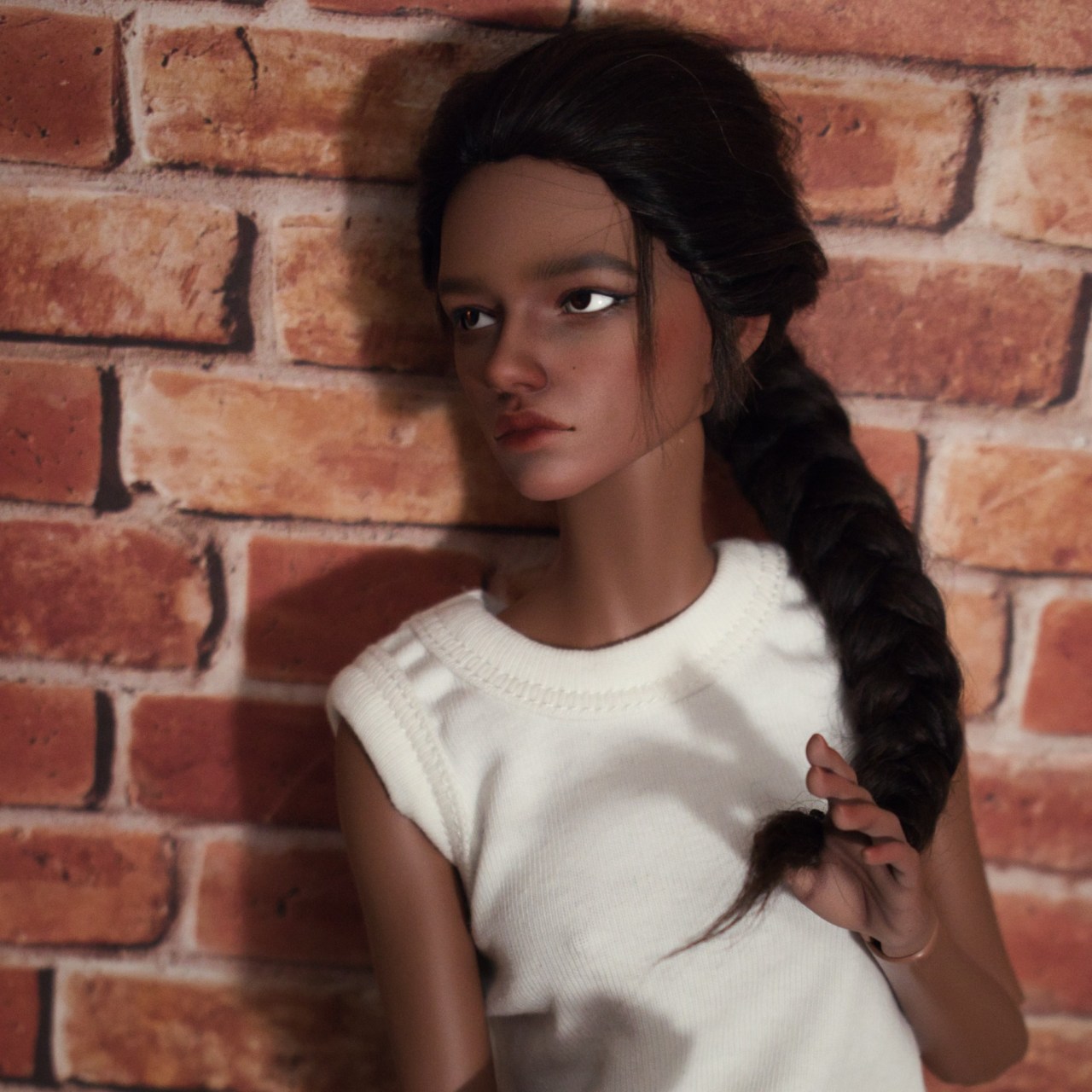

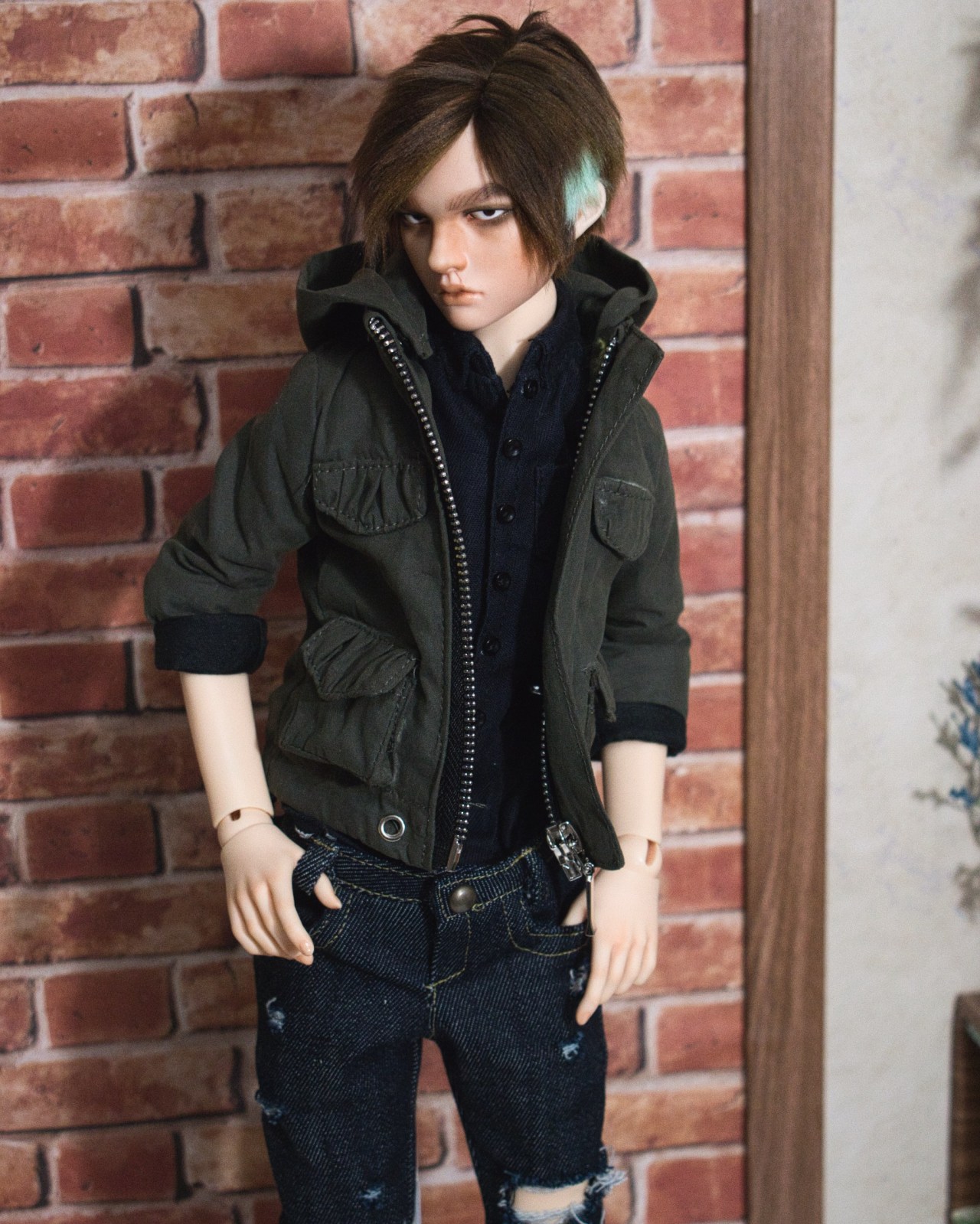

A handful of quick photos from after I rearranged my shelves and redressed some dolls. I’ve been working WAS to much overtime for over a month now so sorry I don’t have much to say.

Tags on Tumblr are so annoying I’m just going to list the dolls in the post body and hope that lets searches pick them up.

1. Custom 3D printed head and body with Resinsoul Tang limbs and Dollshe 28M Fashion Maxi hands

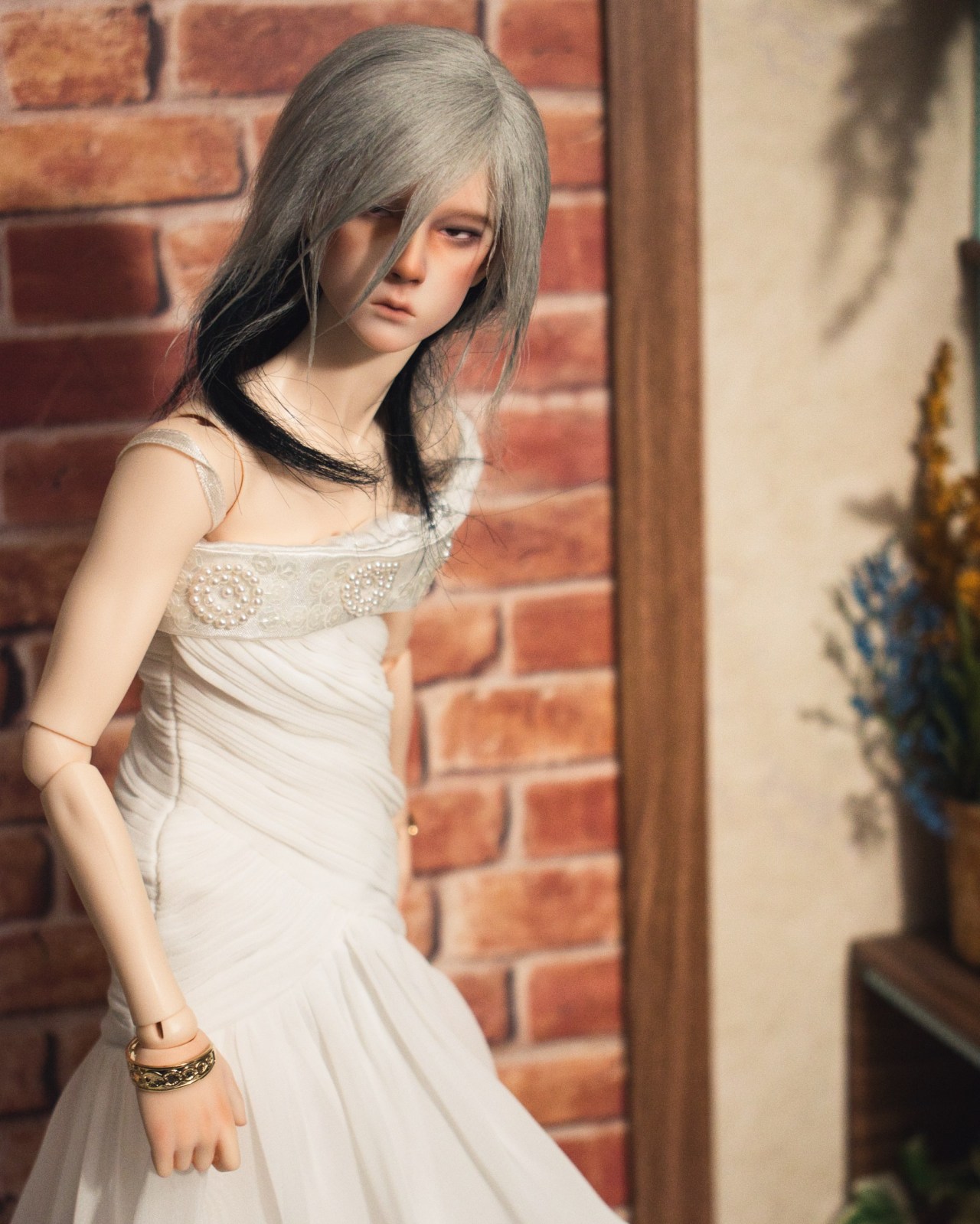

2. Iplehouse FID Elle

3. Dollshe 18M Fashion Maxi Grown Saint SA sleeping head with eye mod on Fairyland Fairyline Minifee boy body

4. Souldoll Soulkid Joelle on Akagidoll 45cm body

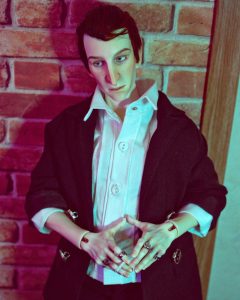

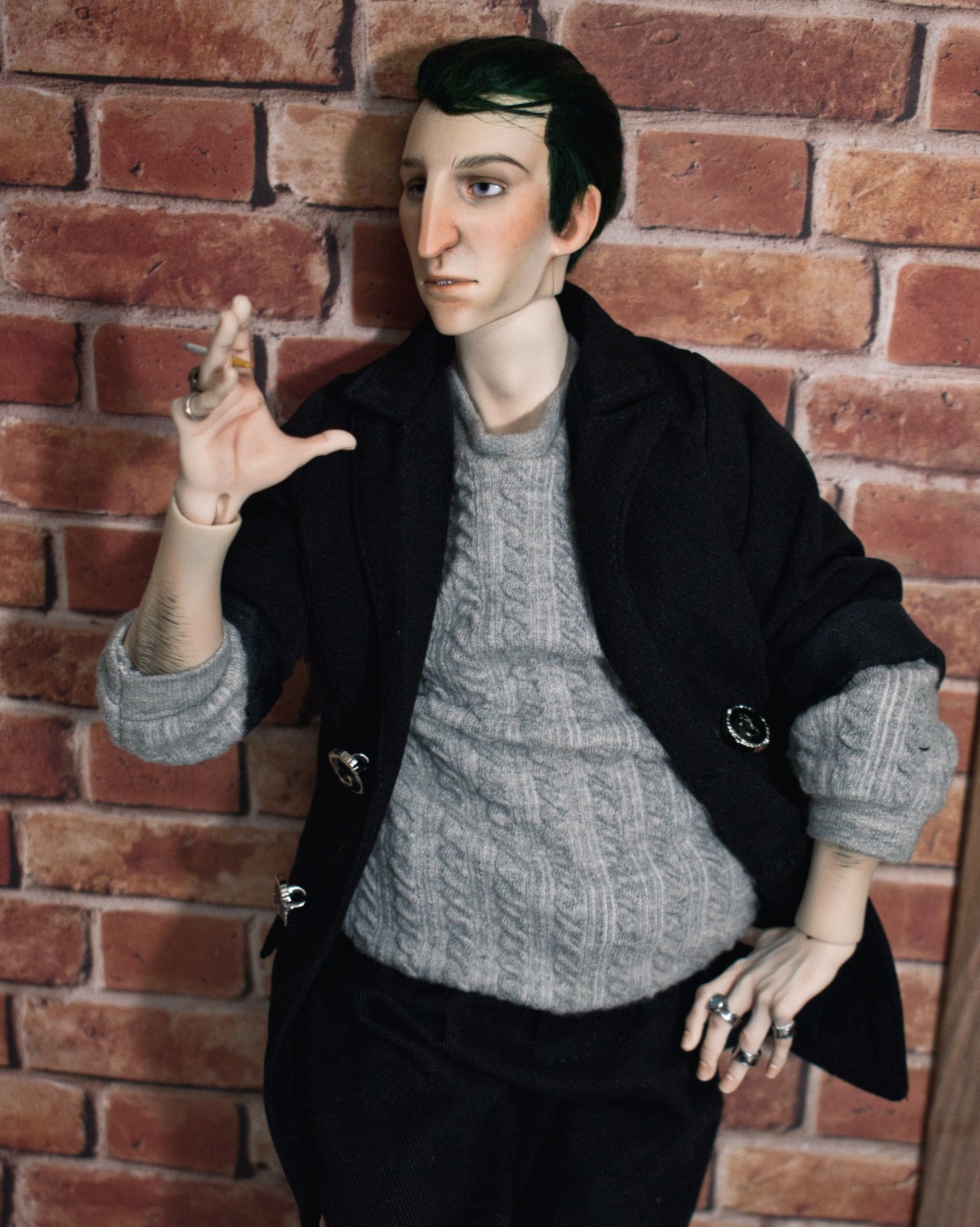

More recent photos of Daniel, mostly to show off his new rings. Also there you can see that Tennant on the Dream Valley body is way too tall, haha. When his body in the right color arrives I’m going to shorten the legs.

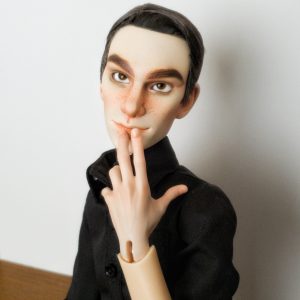

I took these boudoir-y photos of Daniel a while back for a Men’s Monday BJD thing that IG was doing a while back. I get the distinct feeling the Tumblr crowd will be more interested than IG though. Thanks for all the nice comments on him!

Also from late 2019 to Summer 2020, here’s Tennant 2.0, which I worked on alongside Daniel. His head sculpt is a lot more refined compared to the first version, and more appropriately scaled. Like Daniel, he’s printed on my Anycubic Photon, primed, and airbrushed. I think it’s cool to see how much I’ve improved at faceups as well! I did go back and darken his brows a bit when I replaced his eyes. I’m very pleased that these two look good together now.

Daniel 2.0! I worked on him (the head + wig, the body is unchanged) from late 2019 through mid 2020. I refined the sculpt slightly and printed it out on an Anycubic Photon resin 3D printer this time. I didn’t do much sanding, just primed and airbrushed the head. The faceup went a lot better this time as well. I made him a wig from some mohair I had custom dyed on Etsy, but I think I’ll make a separate post about wigs later. I’m quite proud of how he turned out.

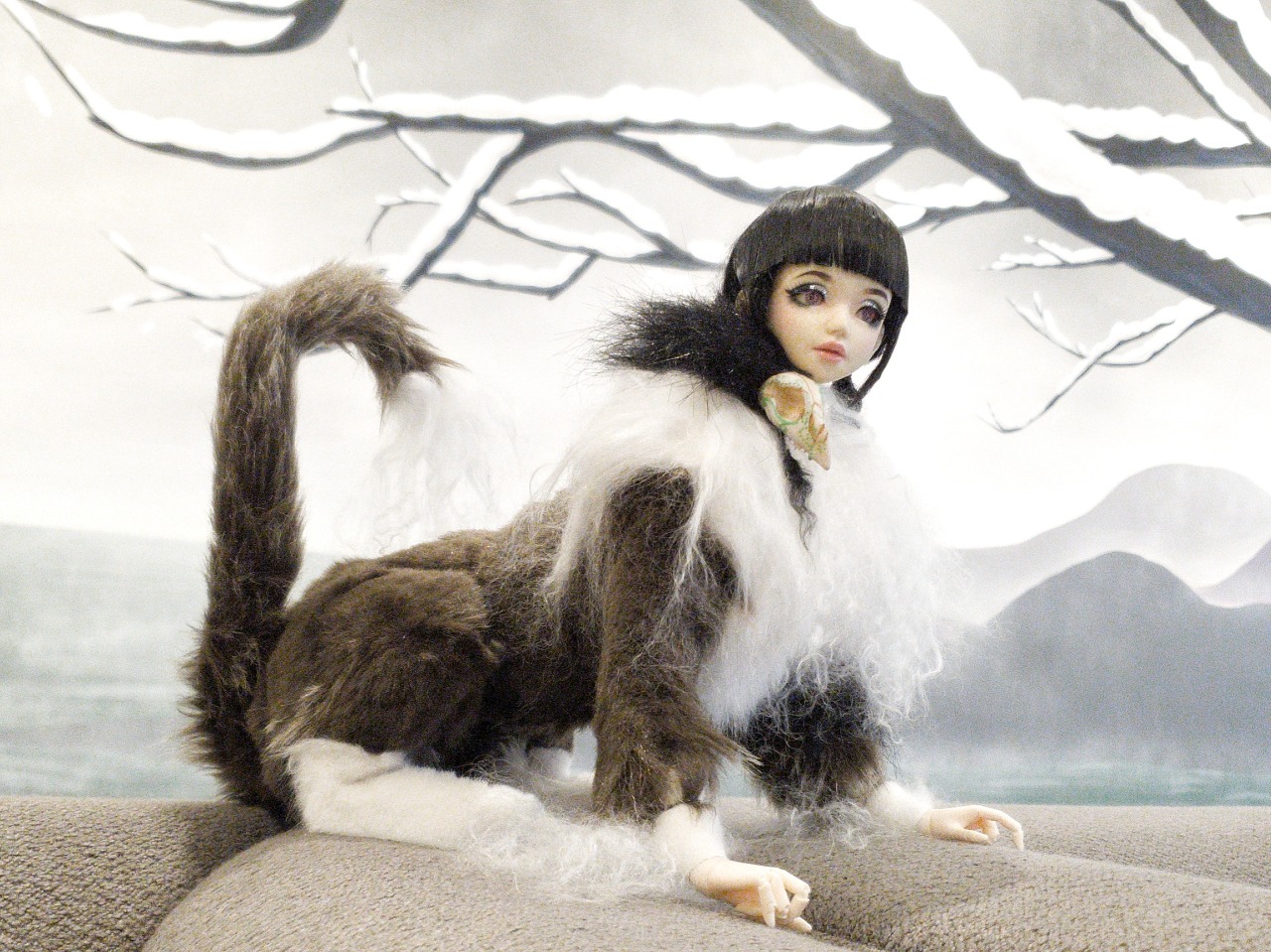

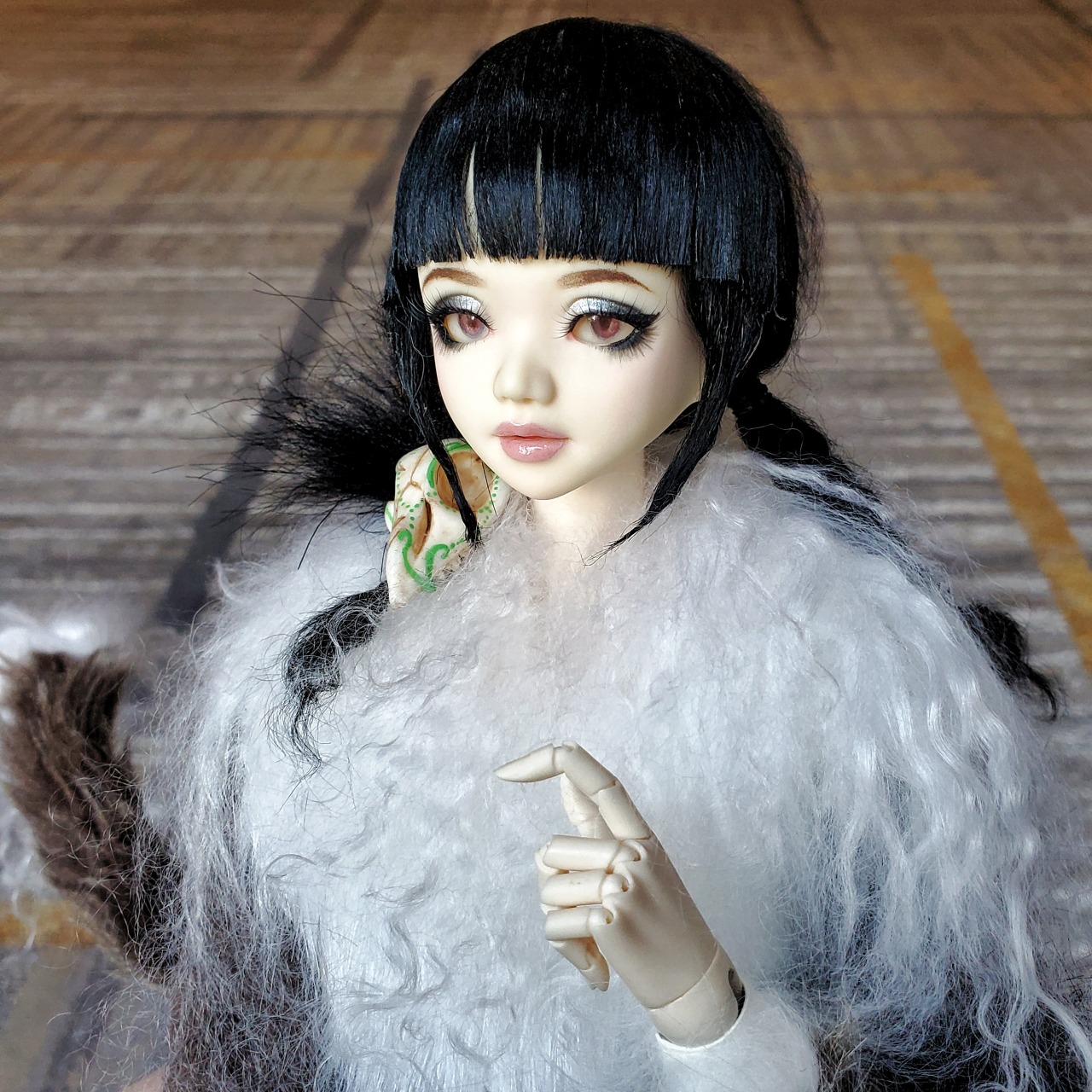

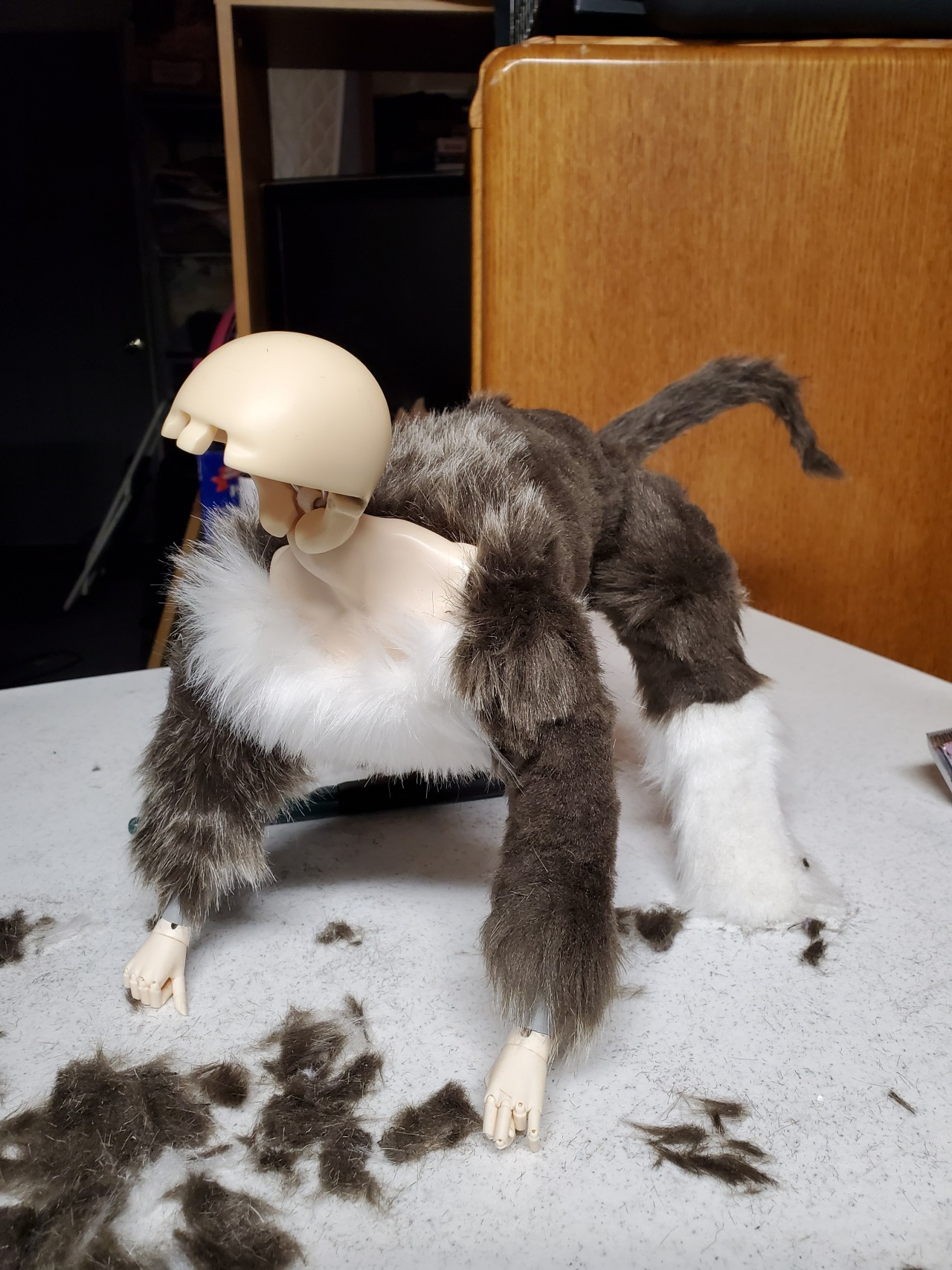

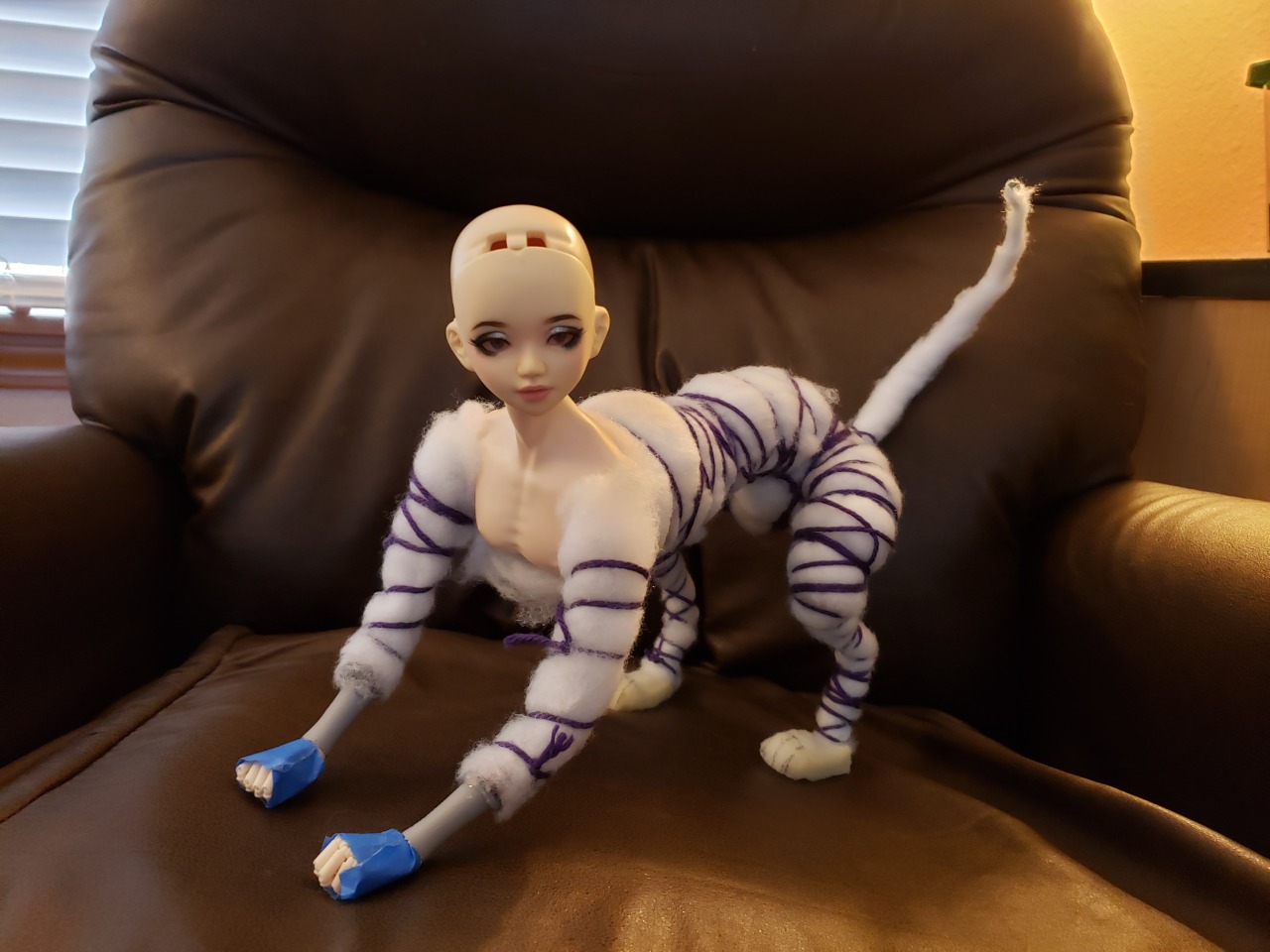

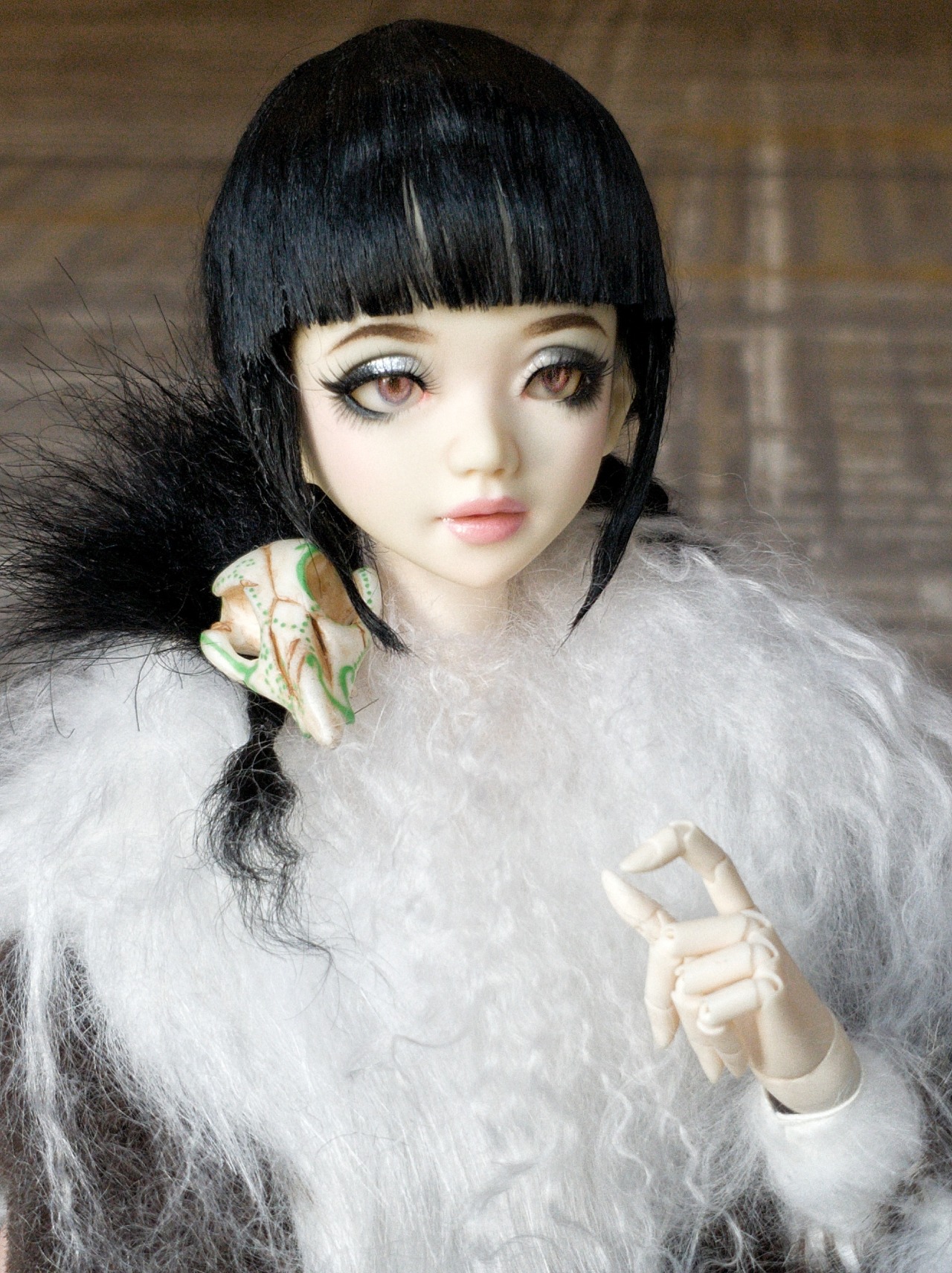

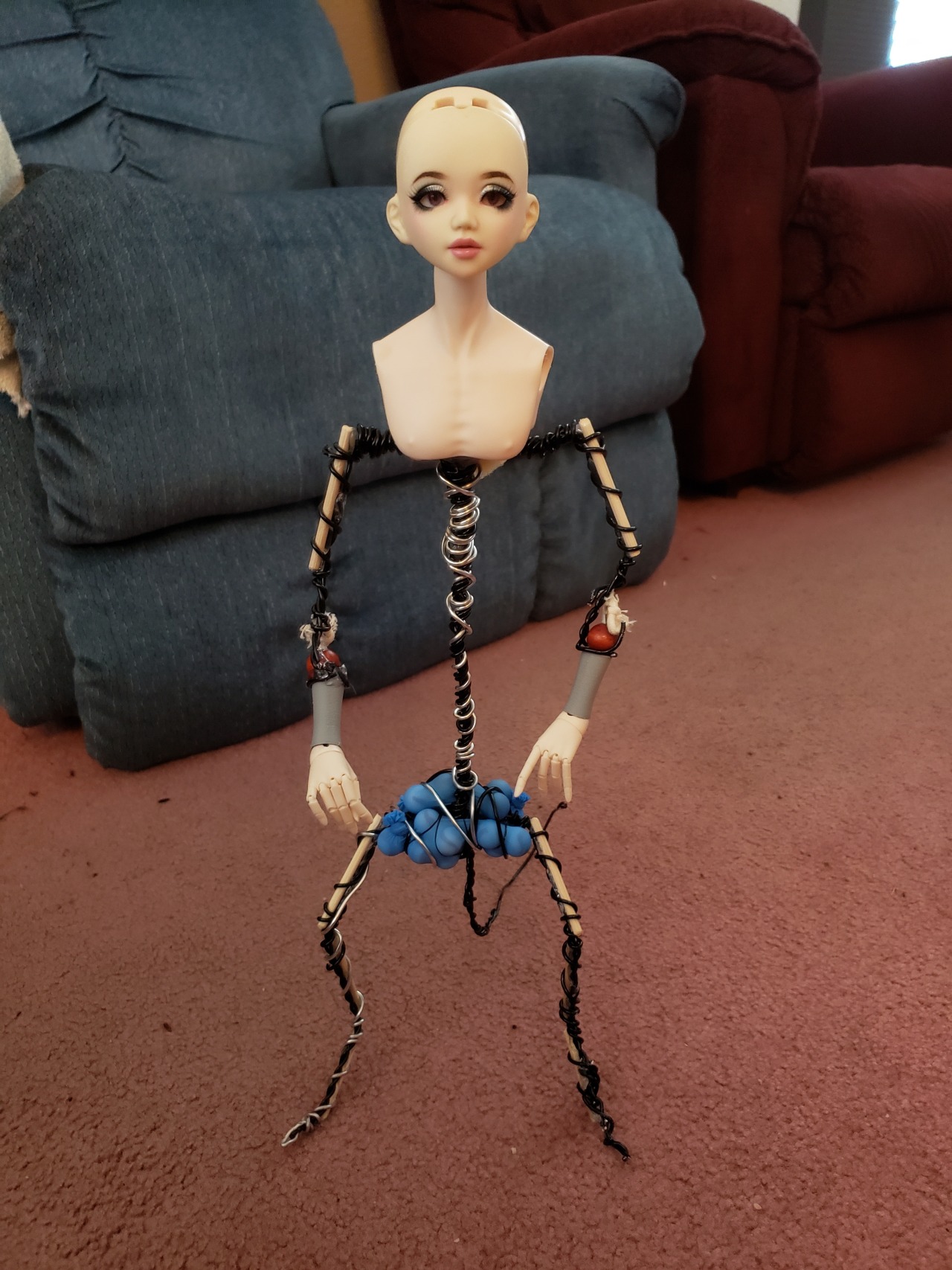

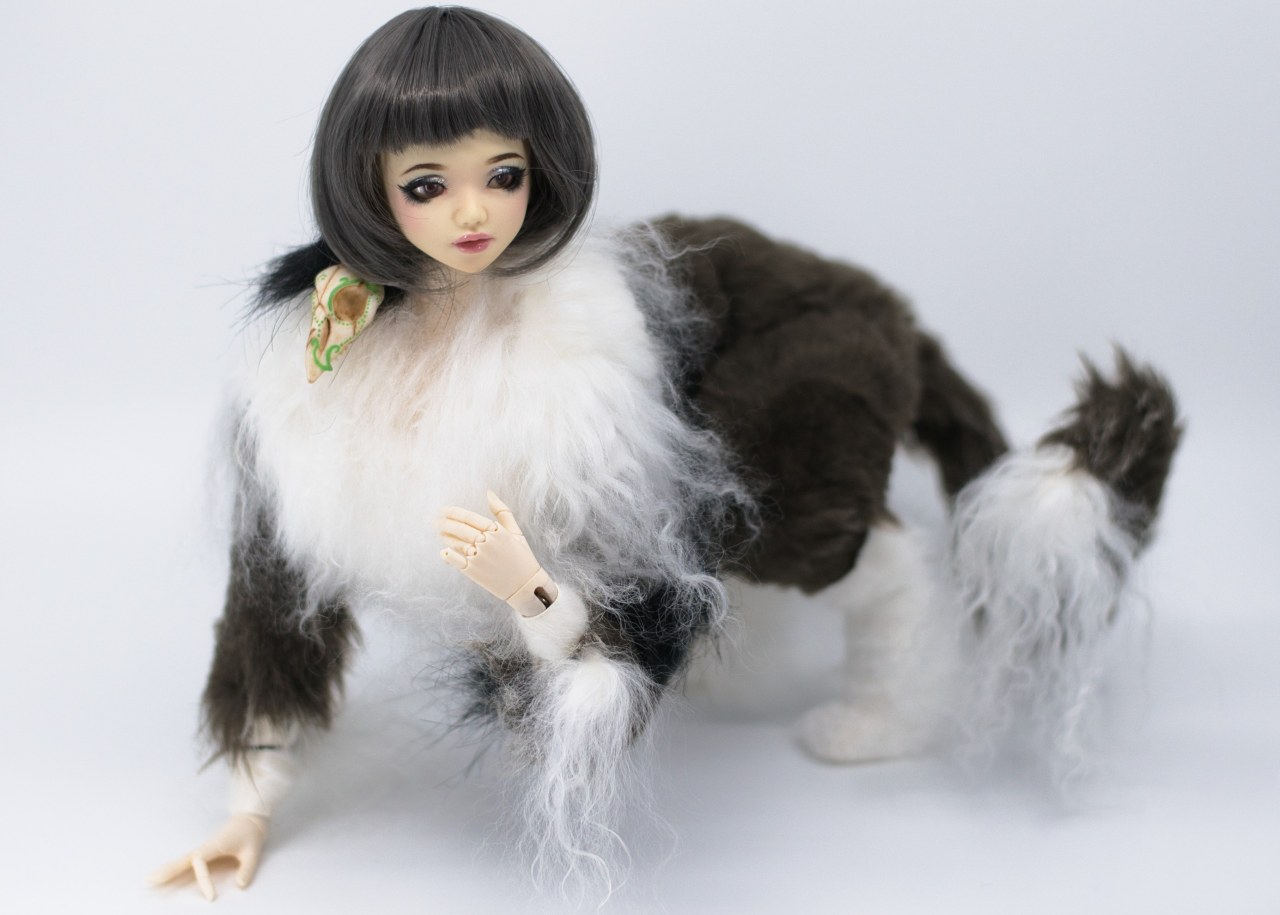

I got an Unoa Lusis head at a doll show and decided that I wanted her to be a Sphinx! Imade her body in the posable art doll style and I learned a ton about how to do it better in the future, haha. She has a Buff headback, the sanded Resinsoul Tang upper torso I had left over from Daniel, and a pair of ResinSoul jointed hands. I 3D printed the wrist parts. She borrowed Soony’s wig for the convention I brought her to (November 2019, RIP conventions), then I got her a better one than the gray wig in the top photo there but I haven’t gotten a photo of her in it yet.

After I made the Tennant BJD, I had to make Daniel, but he was a much bigger project because I knew that I couldn’t get a body with the right body type (ESPECIALLY not in ¼ size). He was a work in progress through a lot of 2019.

I created the torso sculpt starting with an open source character creation addon for Blender (Manuel Bastioni or something like that? It wasn’t available anymore last I checked.) but I modified/resculpted it quite a bit. The head, like Tennant’s, was done in Sculptris then Blender. I finished the pieces the same way as Tennant’s head… it was just more pieces and a lot more work. I also put some heavy gloss around the joints to protect the paint under the final matte sealant coat, and all the pieces are sueded with real suede very generously. None of the joints have chipped yet.

I used the limbs from the Resinsoul Tang body Tennant was on before and I got some ¼ Dollshe 28M hands. He’s kind of similar in measurements to a DearSD or “Big Baby” doll. I’ve since created an updated head (I didn’t even finish the wig for this one, haha) but the body is still the same.

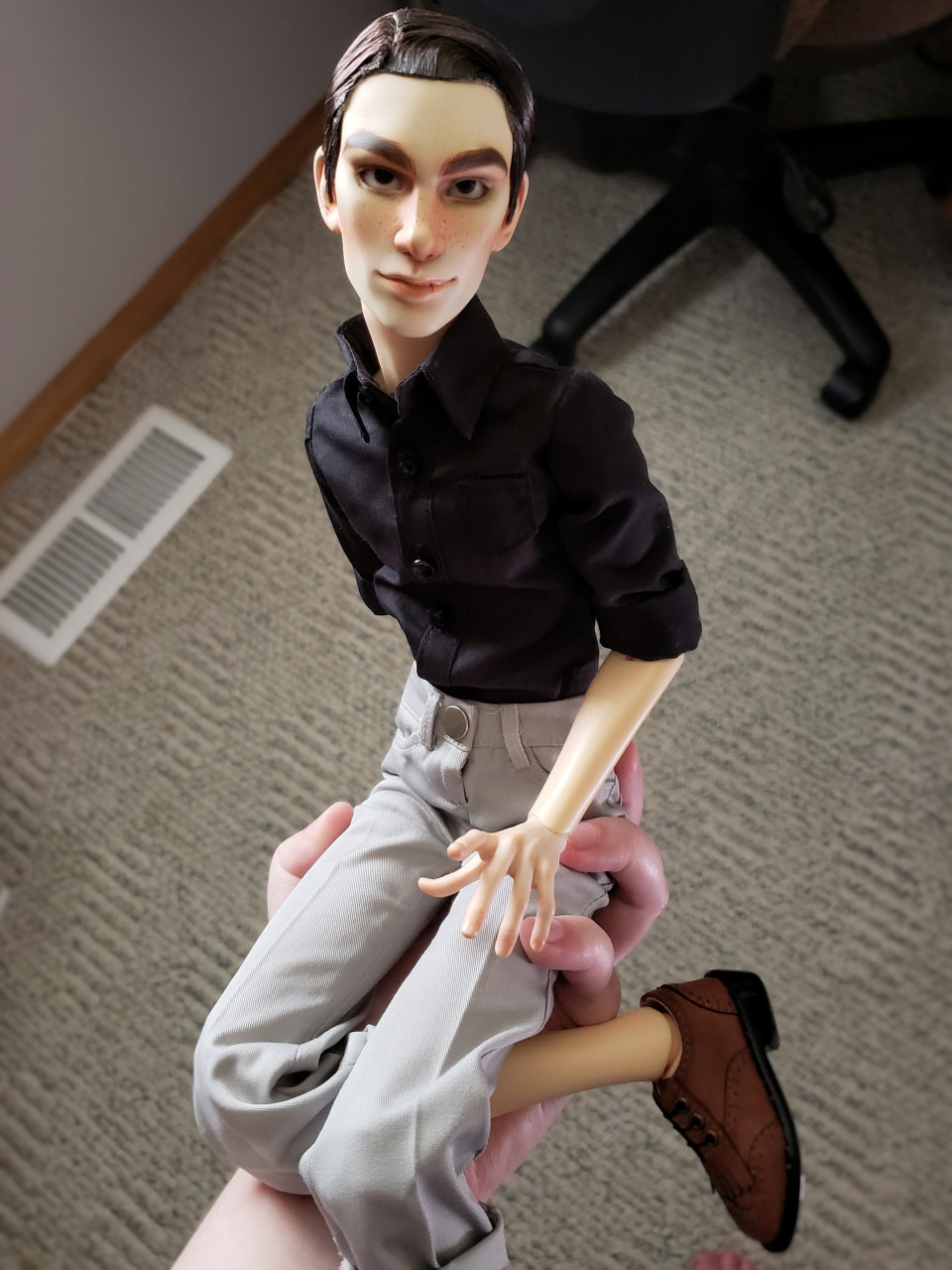

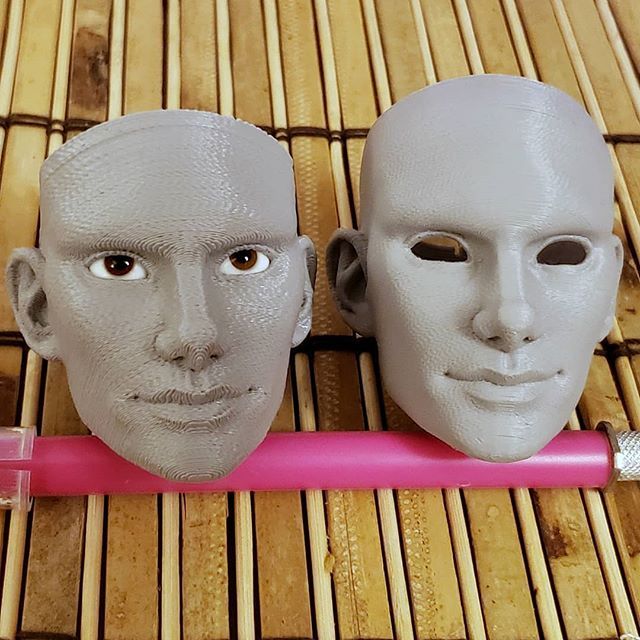

3D printed Tennant BJD, mk 1, from 2018! He was originally made for a Resinsound Tang body with Dollshe hands, then I got him an Akagidoll body later. He was sculpted by me in Sculptris and finished in Blender. I printed him on my Monosprice Maker Select Plus and finished the head with putty, spray can primer, lots of sanding, and a terrible thick coat of Krylon spray paint. His hard cap wig is saran and very much glued in place, haha.

I’m still pretty proud of him honestly, but I made a version with a refined sculpt, smaller head, and resin print later.
